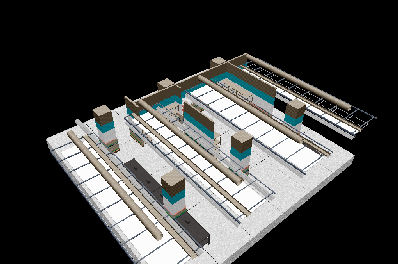

View 1, 3D Shaded Model
This image started as a 2D drawing. It was extruded into a wireframe in DesignCAD 3D (DesignCAD is published by ViaGrafix). A solid model was then built on the wireframe. Colors were mixed and textures created in DCAD 3D using DCAD's "color ball," a very intuitive, dynamic materials creation tool. This is one of 19 views created to illustrate a porion of an interior in the basement of an existing building.
This model was created using DesignCAD 3D v4 for DOS
